T-BAR SYSTEM

Skylights are constructed using aluminium extrusions. Two basic extrusion profiles in the manufacture of skylights are T-bar System and Pressure Cap System.

The T-bar system in skylight construction allows for simple construction, utilizing inexpensive flashing details and allowing for maximum free-spans of 6' only, especially in snow country and depending on roof pitch. The T rafters are spaced at approximately 24"to 30" centres. For wider spacing and longer spans, please review the pressure plate method.

T-bar skylights are designed on a rain screen principle: they have integrated condensation and drainage tracks.

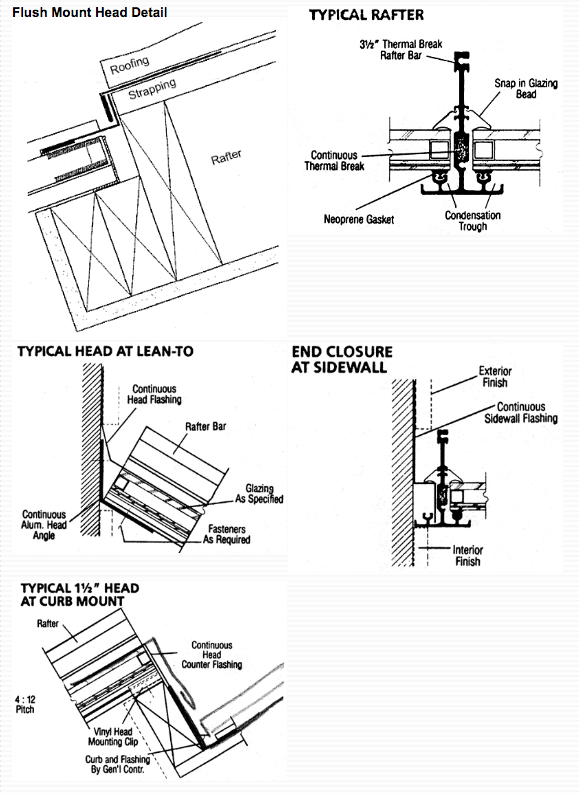

T-bar sections can have either a thermally broken profile for insulated sealed units, (shown in the illustration above) or non-thermally broken profiles for single glazed applications.
